Romaco Tecpharm Develops New ERS for Tablet Coaters

Romaco Tecpharm Develops New ERS for Tablet Coaters

Romaco Tecpharm has announced the development of a new energy recovery system (ERS) for tablet coaters.

This innovative technology reduces thermal energy consumption (steam, hot water, oil, or electricity) by up to 50 percent. Moreover, the temperature of the outlet air is significantly lower. An integrated energy monitor measures all consumption in real-time and determines the precise energy-saving potential.

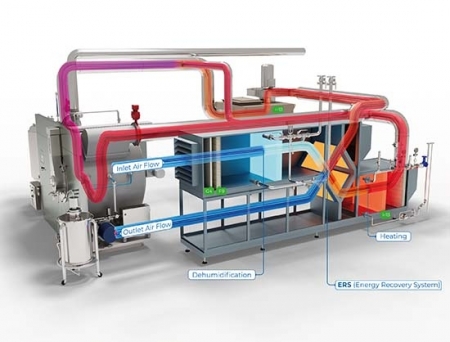

Romaco Tecpharm’s new energy recovery system (ERS) enables up to 50 percent savings in thermal energy consumption during tablet coating. The technology is based on the recovery of waste heat generated during the coating process. A cross-flow plate heat exchanger is integrated into the tablet coater’s air handling unit (AHU) for this purpose.

The inlet and outlet air flows in this recuperative system cross in opposite directions without coming into contact. To achieve this, the process air flows via separate air ducts which pass through the orthogonal plates of the ERS. The thermal energy is transmitted through these plates, whose rectangular shape guarantees homogeneous and efficient heat exchange. This innovative form of energy recovery for tablet coaters is protected by a utility model.

The coating process gives rise to intensive energy consumption because the tablets have to be sprayed with liquid coating suspension and dried in parallel. To dry the tablet bed, very hot and dry air introduced into the coater drum is guided through it. This causes the coating liquid to evaporate on the surface of the tablets, which are simultaneously coated with the solid particles in the coating suspension.

However, the temperature of the air saturated with steam drops only slightly at this point. This minor temperature loss inside the drum occurs due to the poor thermal conductivity of the tablets.

Very warm, energy-laden air flows out continuously as a result throughout the coating process. In most cases, this thermal energy simply goes to waste. For the first time, the energy recovery system developed by Romaco Tecpharm will put an end to the intrinsic waste of this kind.

In the following case study, the high-energy outlet air is not merely discharged and wasted but recirculated at a temperature of 45 to 50°C via the plate heat exchanger of the ERS, where it heats the inlet air.

Before flowing through the energy recovery system, the fresh inlet air first of has to be dried by being cooled down to about 10°C by a cooling coil, resulting in condensation. With a residual moisture content of about 8 g/kg, the inlet air now passes through the orthogonal heat exchanger, where it is heated to between 35 and 40°C. It is then heated further until it reaches the process temperature (approximately 70°C in this example).

The ERS’s enormous energy-saving potential is most effective in large production machines, which have a proportionally higher airflow per batch. The absolute amount of thermal energy saved is accordingly higher with high throughputs.

This energy saving is accompanied by lower manufacturing costs – a particularly relevant aspect for standard products that are produced in large quantities and have a comparatively low sales value. As an energy-saving measure, the ERS is especially profitable here.

The energy saving achieved with the ERS can be precisely measured and mapped with the help of the energy monitor. This analysis tool records consumption in real-time and determines not only the amount of thermal energy saved but also carbon dioxide emissions from the drum coater.

The energy monitor provides robust data for the annual sustainability reports which are nowadays a legal requirement for more and more companies. Energy monitoring is integrated into the tablet coater’s HMI panel and can be supplied as an option.
